Zirconia Ceramic Screw Bolts Nuts & Washers

Shengda Ceramic provide all kinds of Zirconia Ceramic Screw Bolts Nuts & Washers: M3, M4, M5, M6

Inquire Now

Product Introduction

Product Description

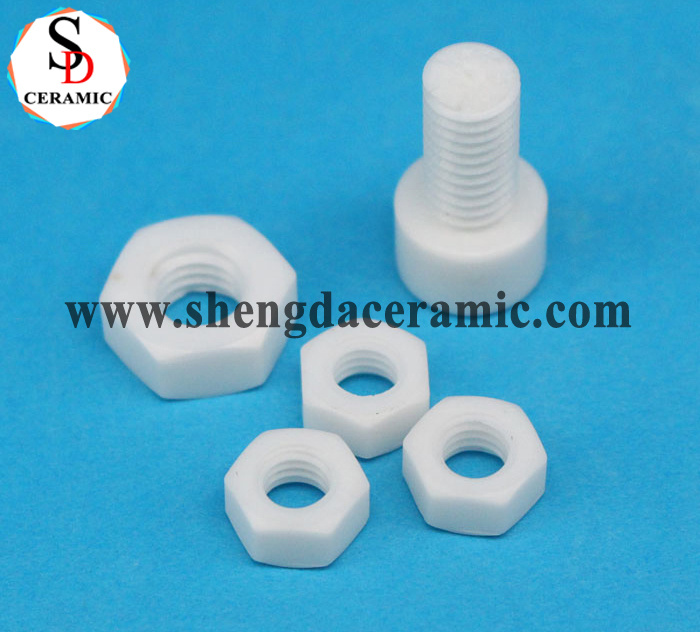

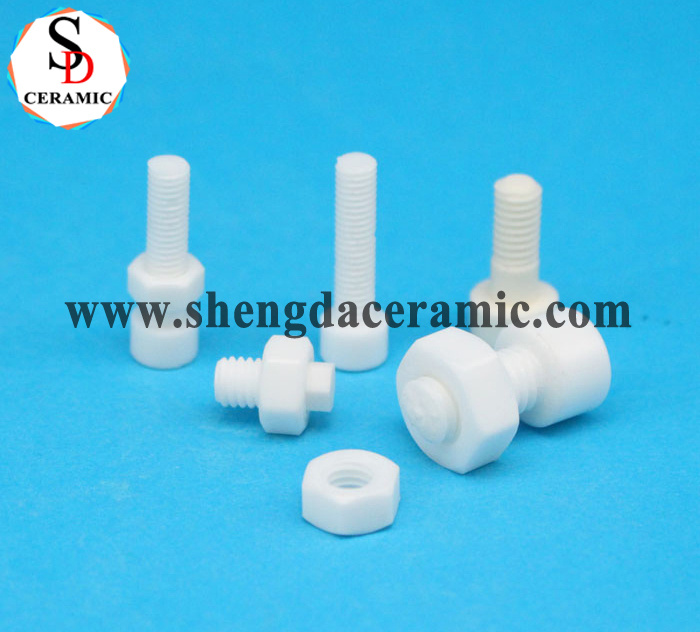

Zirconia Ceramic Screw Bolts Nuts & Washers

Zirconium dioxide, whose chemical formula is ZrO2, is the main oxide of zirconium. Under normal conditions, it is a white, odorless and tasteless crystal, and it is insoluble in water, hydrochloric acid and dilute sulfuric acid. The chemical properties are inactive, and it has the properties of high melting point, high resistivity, high refractive index and low thermal expansion coefficient, making it an important high temperature resistant material, ceramic insulating material and ceramic sunscreen, and it is also the main raw material for artificial drills.

Zirconia Ceramic Screw Bolts Nuts

Zirconia Ceramic Screw Nuts

Zirconia Ceramic Screw Bolts Nuts

Technical Parameters

Properties	Units	Steatite Ceramic	Cordierite Ceramic	Mullite Ceramic	95% Al2O3	99% Al2O3	Zirconia Ceramic	Silicon Nitride
Colour		White	Yellow	White	White	Ivory	White	Grey
Density	g/cm3	2.7	1.9	2.6	3.5	3.85	6	3.2
Flexural Strength	Mpa	140	30	120	280	340	1150	600
Compressive Strength	MPa	900	350	500	2100	2200	2500	2500
Max Use Temperature	°C	1000	1200	1300	1400	1650	1500	1800
Thermal Condutivity	W(m.K)	2~3	1.3~1.8	2~6	16~28	19~30	2.5	20
Thermal Expansion Cofficient	10-6/°C	7 ~ 9	1.5~3.5	5~6	6.5~7.5	6~8	8~10	3~4
ThermalShock Resistance	△TC	100	300	150	140	150	250	600
Specific Heat	J/kg.K	850	800	900	950	950	500	500
Dielectric Strength	KV/mm	20	—	30	12	10	5	20
Dielectric Constant	Er	6	—	8	9	9	12	6

Features

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) High strength

6) Used in all electric products, electric heating products and wear resistant machinery parts.

7) OEM, ODM and OBM are welcomed

Production process

Certifications

Precision CNC Alumina Ceramic Setter Flat Plate

Our advantage

● Certificates: ISO & SGS

● OEM & ODM: OEM & ODM service is available

● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.

● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.

● Best ex-factory price

● Worldwide customers

● Customized according to needs

● Continuous research and development of new products

● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.

Packaging and shipping

Precision CNC Alumina Ceramic Setter Flat Plate

Our customers have a wide range of processing choices for transportation mode.

Precision CNC Alumina Ceramic Setter Flat Plate

Our Main Products

Precision CNC Alumina Ceramic Setter Flat Plate

Company Profie

Yixing Shengda Refractory Ceramic Co., Ltd, established in 1995, Yixing, China with an area of 4,000 square meters and fixed assets of over 1 million US dollars, is a professional manufacturer of Steatite Ceramic Parts, Alumina Ceramic Parts, Cordierite Ceramic Parts, Ceramic Band Heater Insulators, Ceramic Terminal Block, Thermostat Ceramic Parts, Zirconia Ceramics Parts, Ceramic Heater Plugs, etc.

Shengda Ceramic equipped with CAD/CAXA/Solidworks software to provide professional OEM & ODM service.

Looking forward to co-operating with the customers from all over the world!
