Steatite Ceramic Main Features
1. High resistivity
2. Moderate strength
3. Excellent electrical properties
4. Low coefficient of thermal expansion
5. Good mechanical stability
Product Introduction
Product description
Steatite is a low cost material with high electrical resistance at high temperatures, good mechanical strength and a very low dielectric loss factor. Such properties make it ideal for high frequency, low loss, and high voltage insulation. Moreover, steatite is an excellent material for electrical engineering as it can be readily shape sintered into a wide variety of forms such as washers, bushings, resistor forms, spaces and beads.
Steatite has been used for many years in large-scale industrial systems, household electronic appliances, aerospace and automotive applications, and specialized eletro-technical instruments such as cathode-ray tubes.

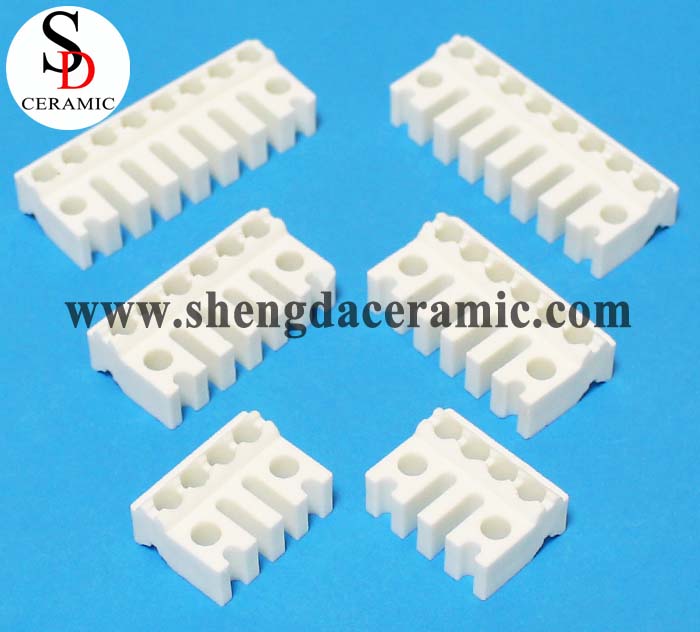

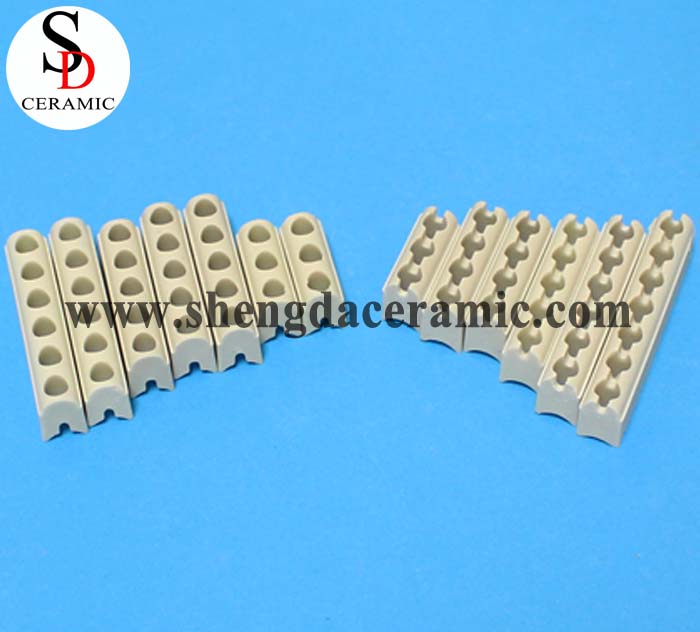

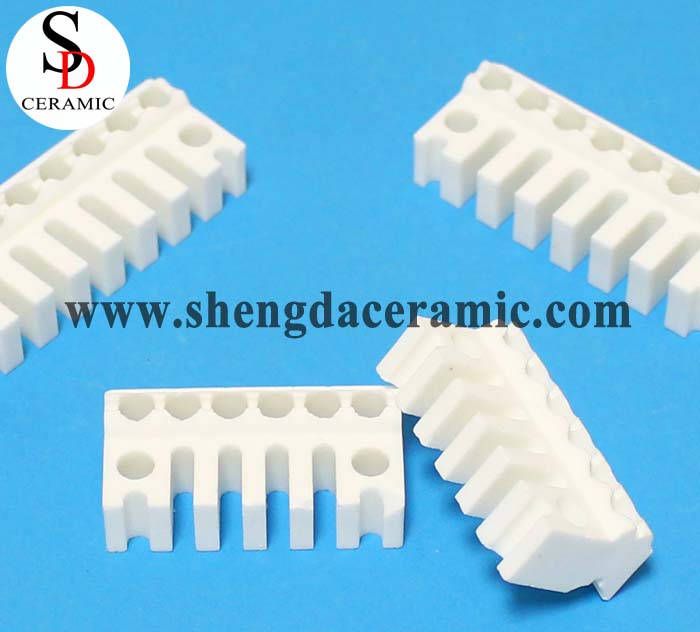

Shengda Ceramic provide all kinds of steatite ceramic tubes. Also the rings, rods, tubes, plates, inserts, bushing, sleeves, blocks, plunger and so on. Any dimension requirement, please contact us.
Technical Parameters
Performance | |||||
Item | Index | Unit | Steatite | 95 Al2O3 | 99 Al2O3 |
Physical Characteristics | Bulk density | g/cm 3 | 2.7 | 3.6 | 3.6 |
Water absorption | % | 0 | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
Elastic modulus | Gpa | 120 | 280 | 320 | |
Thermal Characteristics | Poisson's ratio | - | 0.21 | 0.22 | 0.23 |
Expansion coefficient | 10-6/℃ | 7.9 | 7.1 | 7.2 | |
Thermal conductivity | w/(m . k) | 2.5 | 16 | 24 | |
Specific Heat | 10-3 J/ (kg * K) | 0.75 | 0.78 | 0.78 | |
Electrical Characteristics | Dielectric constant | - | 6.2 | 9 | 9.4 |
Dielectric loss angle | *10 -4 | 18 | 15 | 5 | |
Dielectric strength | *10 6 V/m | 18 | 12 | 15 | |
Production process
Features
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) High strength
6) Used in all electric products, electric heating products and wear resistant machinery parts.
7) OEM, ODM and OBM are welcomed
Production equipment
Our advantage
● Certificates: ISO & SGS
● OEM & ODM: OEM & ODM service is available
● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.
● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.
● Best ex-factory price
● Worldwide customers
● Customized according to needs
● Continuous research and development of new products
● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.
