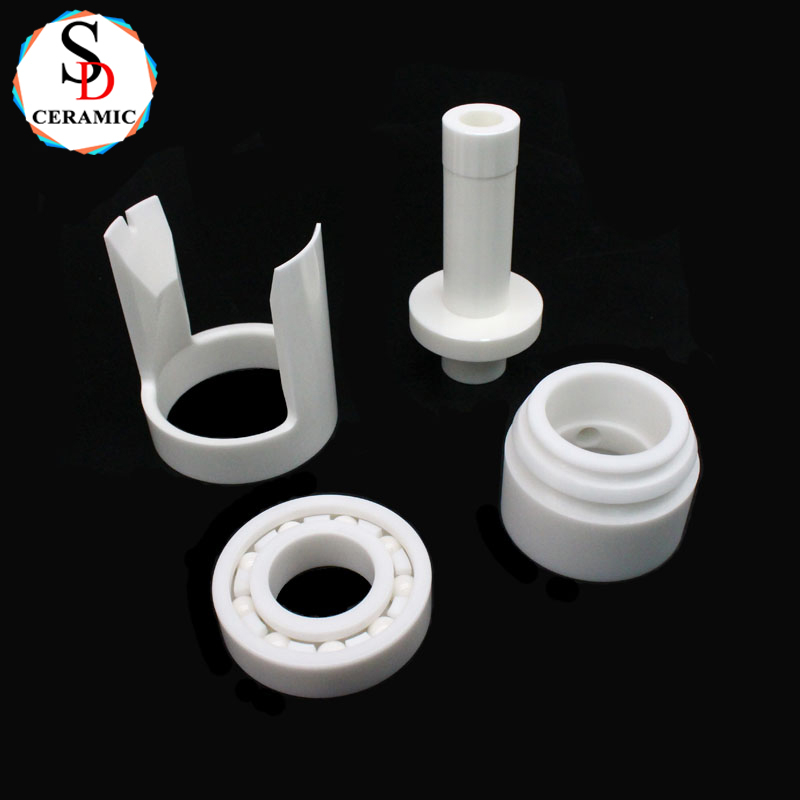

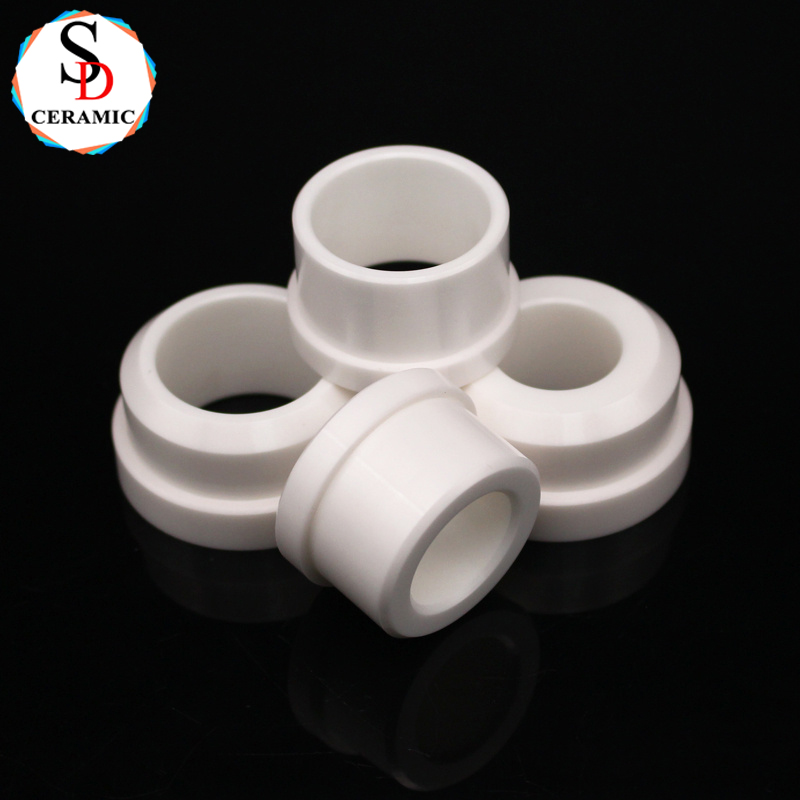

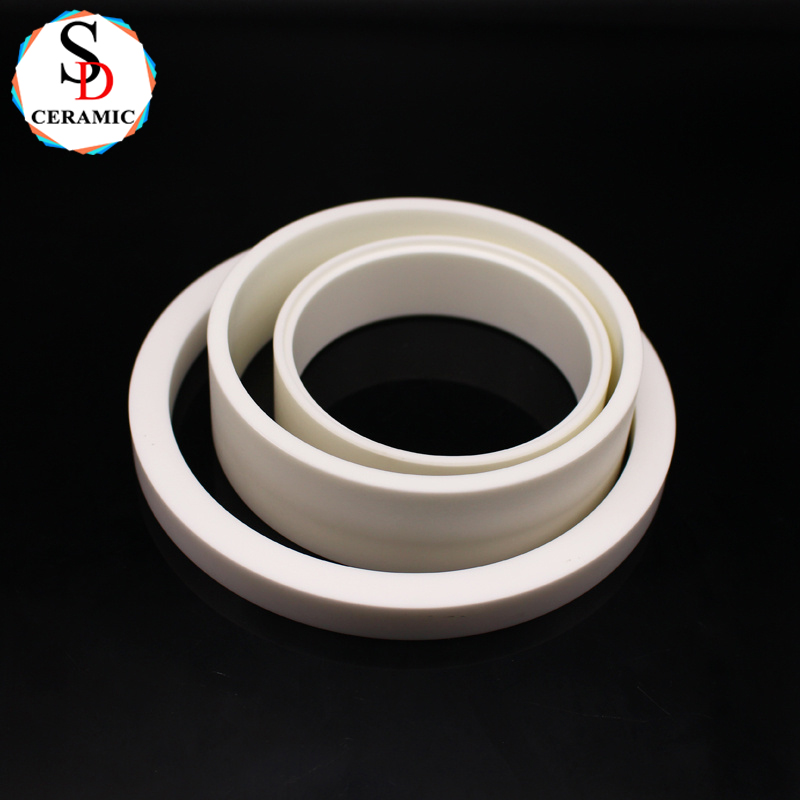

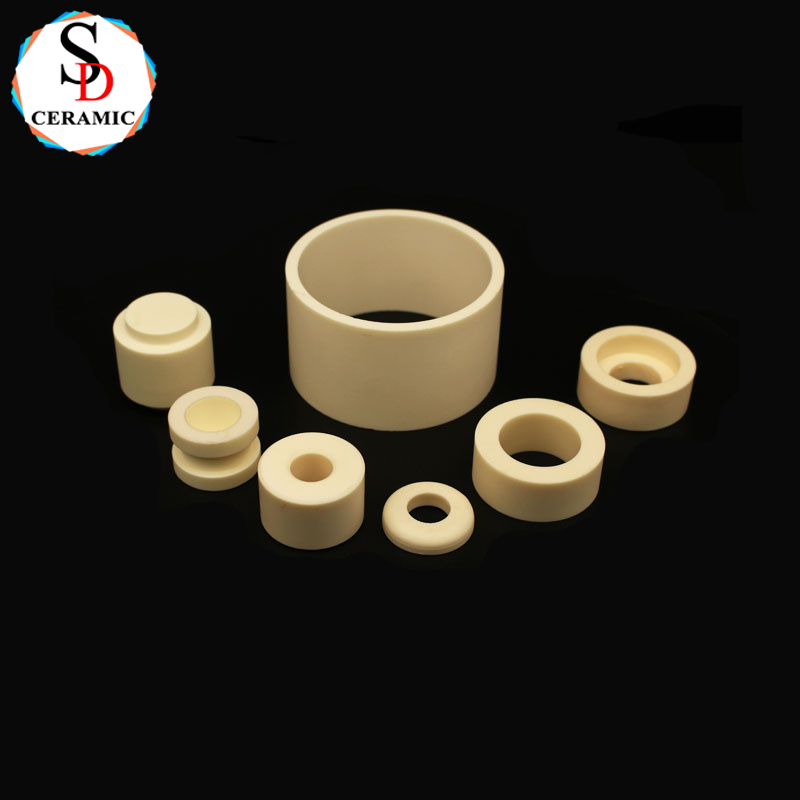

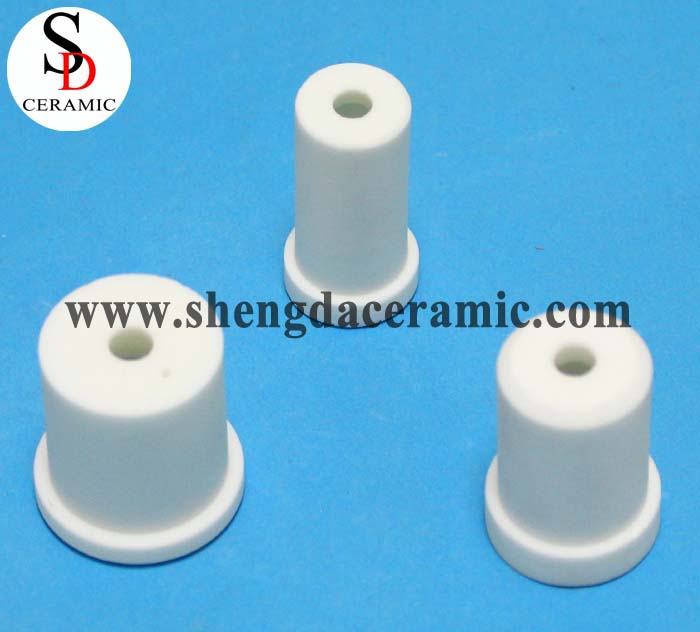

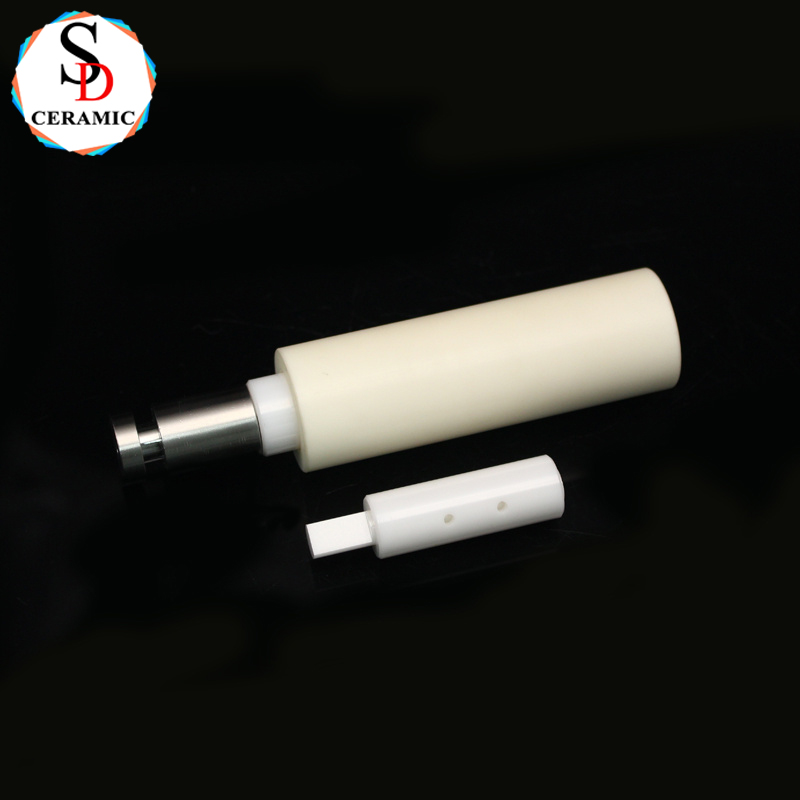

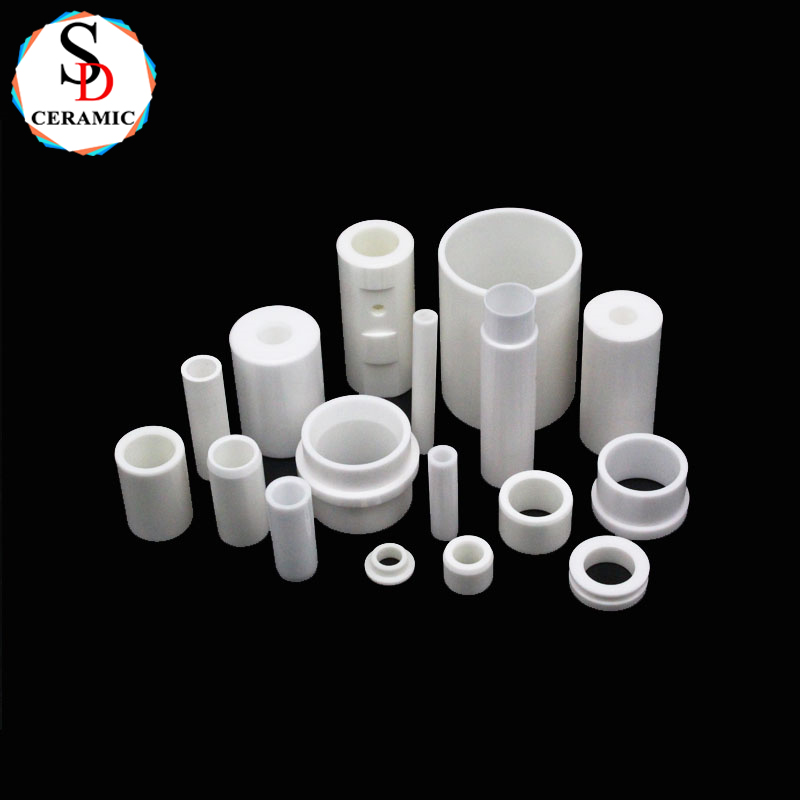

Shengda Ceramic provide a wide specifications of the ceramic bushing, ceramic sleeves, ceramic liner, ceramic sleeve bearing and related industrial ceramic components.
Why Choose Ceramic Bushing Series?
✔ Material Science Expertise: Ultra-fine ceramic powders for enhanced fracture toughness
✔ Custom Engineering: Laser scanning for demanding bore concentricity
✔ Cost Savings: ROI achieved in a short time via reduced replacement/labor costs
Product Introduction
High-Performance Technical Ceramic Bushings | Sleeves | Liners for Industrial Applications
Our precision-engineered Alumina/Zirconia Ceramic Bushings, Sleeves, and Liners deliver unmatched wear resistance, corrosion immunity, and thermal stability for extreme industrial environments. Manufactured with 99%+ pure advanced ceramics, these components outperform metal alternatives in lifespan (3-5X longer) and operational efficiency.
|
|
|
|
|
|
Technical Parameter Table | |||||||||||
| Properties | Units | Cordierite Ceramic | Mullite Ceramic | 95%Alumina Ceramic | 96%Alumina Ceramic | 99%Alumina Ceramic | 99.5%Alumina Ceramic | 99.7%Alumina Ceramic | Silicon Nitride | Zirconia Ceramic | Macor Ceramic |
| Colour | Yellow | White | White | White | Light yellow | Light yellow | Light yellow | Black | White | White | |
| Density | g/cm3 | 1.9 | 2.6 | 3.6 | 3.7 | 3.8 | 3.8 | 3.9 | 3.2 | 6 | 2.5 |
| Flexural Strength | Mpa | 30 | 120 | 300 | 320 | 350 | 375 | 375 | 800 | 1100 | ＞94 |
| Compressive Strength | MPa | 350 | 500 | 2000-2500 | 2000-4000 | 2800 | 2800 | 2554 | 2600 | 3000 | ＞345 |
| Modulus of Elasicity(20℃） | Gpa | 40 | 100 | 300 | 320 | 350 | 350 | 357 | 290 | 320 | 65 |
| Max Use Temperature | °C | 1200 | 1300 | 1400 | 1500 | 1500 | 1500 | 1760 | 1300 | 1050 | 1000 |
| Thermal Condutivity | W(m.K) | 1.3-1.8 | 2~6 | 20 | 24 | 30 | 30 | 33-38 | 25 | 3 | 1.48 |
| Thermal Expansion Cofficient | 10-6/°C | 2.5-3 | 2.5-3 | 7.5 | 7-8 | 8 | 8.2 | 8.2 | 3 | 10 | 7.2 |
| Thermal Shock Resistance | △T℃ | 300 | 150 | 140 | 150 | 150 | 200 | 223 | 600 | 250 | 25-100 |
| Dielectric Strength | KV/mm | - | - | 15 | 15 | 18 | 18 | 23.4 | 14 | 15 | ＞40 |
| Dielectric Constant | Er | 8 | 8 | 9 | 9.2 | 9.2 | 9.2 | 9.84 | 9 | 26 | 5.9-6.3 |
Four Industrial Application Cases
1. Mining & Mineral Processing
- Problem: Metal sleeve bearings failed every 3 months in slurry pumps due to abrasive quartz particles.
- Solution: Installed low-clearance Alumina Ceramic Sleeve Bearings.
- Result: Extended service life and reduced downtime.
2. Chemical Processing Pumps
- Challenge: HF acid corroded stainless steel liners in 6 weeks.
- Upgrade: Zirconia Ceramic Liners with Isostatic Pressing treatment.
- Outcome: High corrosion resistance greatly increases the service life.
3. Food/Beverage Conveyor Systems
- Requirement: USDA-compliant, bacteria-resistant bearing surfaces.
- Implementation: Ultra-smooth 99.7% alumina ceramic bushings.
- Benefit: Achieve CIP/SIP cleaning and effectively reduce product contamination.
4. Semiconductor Wafer Handling
- Precision Need: ±5μm positioning accuracy in vacuum robots.
- Solution: Precision-Ground Zirconia Sleeves with low runout tolerance.
- Yield impact: Significantly reduced particle generation vs. PEEK components.
Features
1) A variety of specifications available.
2) High hardness, High strength, Good insulation performance
3) Corrosion resistance, Wear resistance, High temperature resistance

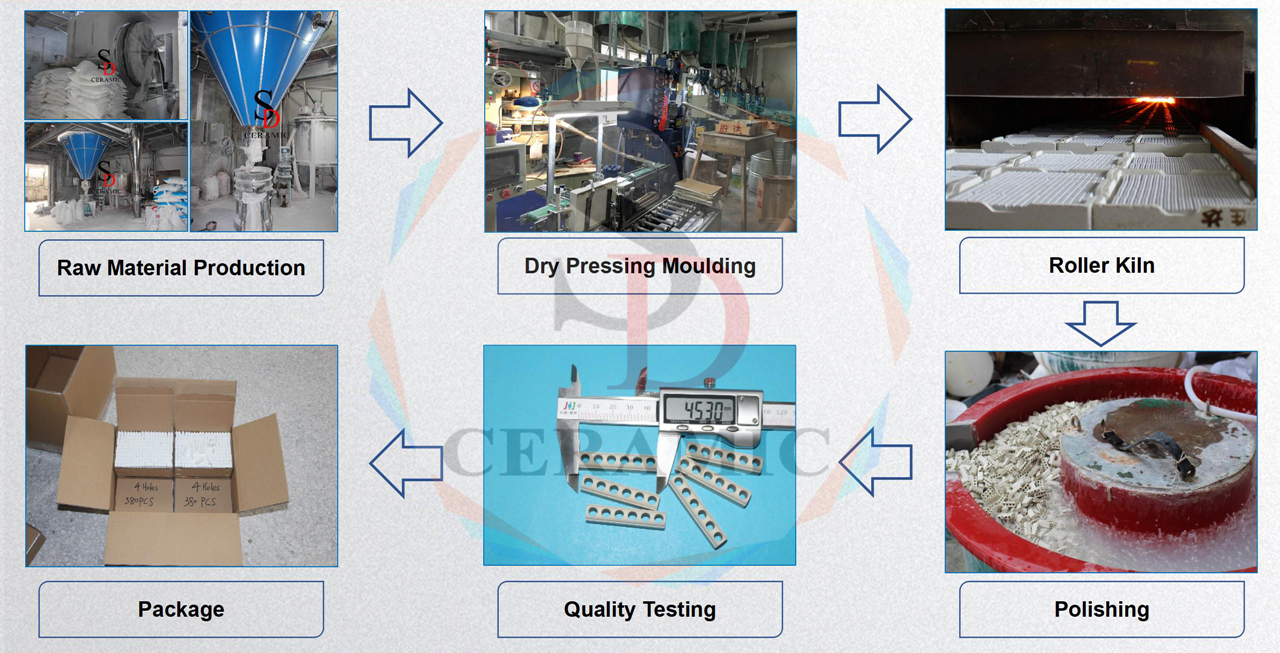

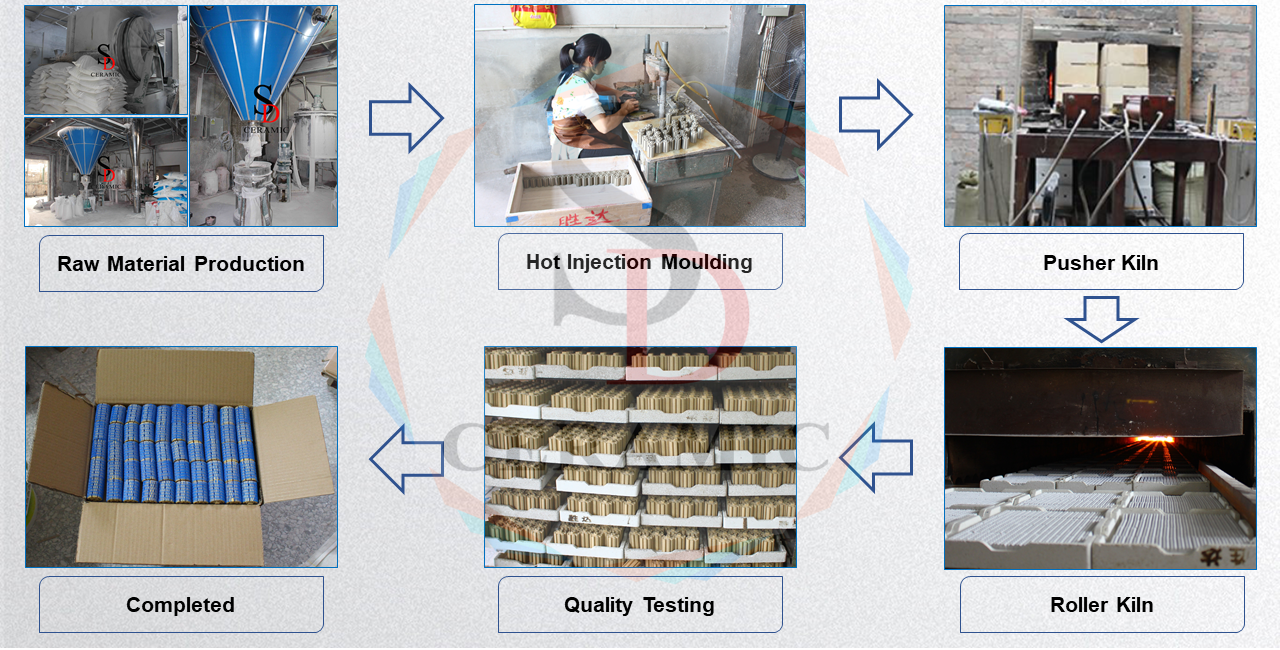

Production process
Dry Pressing
Hot Injection
Production equipment
Our advantage
● Certificates: ISO & SGS
● OEM & ODM: OEM & ODM service is available
● Strict testing procedures :Meeting the requirements of the product design and process, providing reliable testing data.
● Short Delivery time:If less than 1000 pieces, it only takes around 5 days. We also stock some standard-sized products, if you need urgently, we can delivery very soon.
● Best ex-factory price
● Worldwide customers
● Customized according to needs
● Continuous research and development of new products
● Customer service:If you find some quality problem, please contact us, we’ll deal with it as soon as possible.
Our certificate
Packaging and shipping
Our customers have a wide range of processing choices for transportation mode.
● By Express (FedEx, UPS, DHL, TNT, EMS, etc...)
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
● By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
● By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
--- Disadvantage: Slow and you need to take the goods from your destination port by yourself.
